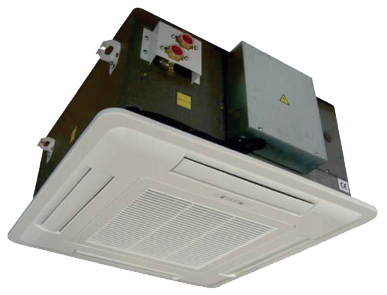

Cassette Type Fan Coil MUCSW-HG Series
TECHNICAL SPECIFICATIONS
| Model | MUCSW-09HG | MUCSW-12HG | MUCSW- 16HG | MUCSW- 18HG | MUCSW- 21HG | MUCSW- 24HG | MUCSW- 36HG | MUCSW- 42HG | MUCSW- 48HG | MUCSW- 60HG | MUCSW- 64HG | ||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Code | CL04401 | CL04402 | CL04403 | CL04405 | CL04406 | CL04407 | CL04409 | CL04410 | CL04411 | CL04413 | CL04414 | ||
| Capacity refrig | Total | W | 2300 | 3000 | 3800 | 5100 | 6100 | 7300 | 9500 | 11500 | 13500 | 15300 | 17100 |
| Sensible | W | 1600 | 2100 | 2700 | 3600 | 4300 | 5100 | 6700 | 8100 | 9500 | 10700 | 12300 | |
| Capacity heating | W | 2800 | 3200 | 4200 | 5300 | 6300 | 8400 | 10500 | 12600 | 14700 | 23000 | 25000 | |
| Power absorbed | W | 37 | 46 | 60 | 76 | 90 | 132 | 152 | 189 | 220 | 330 | 408 | |
| Air flow | m3/h | 450 | 510 | 680 | 850 | 1020 | 1360 | 1700 | 2040 | 2380 | 2890 | 3400 | |
| Sound level (max.) | dB(A) | 38 | 39 | 42 | 44 | 45 | 47 | 49 | 51 | 53 | 57 | 65 | |
| Water flow | l/h | 396 | 516 | 653 | 877 | 1049 | 1255 | 1634 | 1978 | 2322 | 2640 | 2720 | |
| Pressure drop battery | Kpa | 7 | 9 | 11 | 16 | 18 | 19 | 17 | 19 | 22 | 36 | 48 | |
| Pipes (in./out.) | inch. | 3/4″ | 3/4″ | 3/4″ | 3/4″ | 3/4″ | 3/4″ | 3/4″ | 3/4″ | 3/4″ | 3/4″ | 3/4″ | |
| Dimensions (LxWxH) | mm | 580×580 x290 | 580×580 x290 | 580×580 x290 | 701×701 x290 | 701×701 x290 | 811×811 x290 | 811×811 x290 | 811×811 x290 | 960×960 x290 | 960×960 x290 | 960×960 x290 | |
| Weight | Kg | 24 | 24 | 24 | 29,5 | 29,5 | 37 | 37 | 37 | 59 | 59 | 59 | |
* Power supply: 220V-240V/1/50Hz
Nominal COOLING power: Bulb temperature 27°C. Wet bulb temperature: 19.5°C. Water inlet: 7°C. Outlet: 12°C
Nominal HEAT power: Dry bulb temperature: 20°C. Water inlet: 60°C
