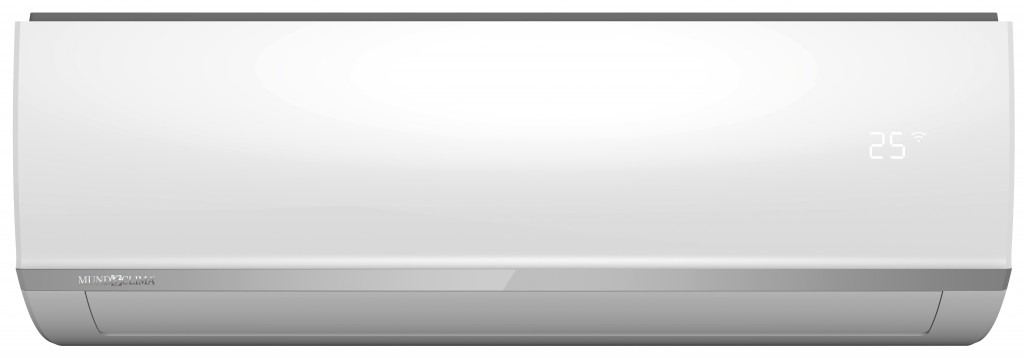

Wall Split MUPR-H6 Series
SAVE INSTALLATION TIME
Easily Removable
Easy access to the PCB, removable fan, movable casing.
Reduces maintenance time by 30%.
More Space for Installation
New support, retaining clips, simpler electrical connection.
20% saving in installation time.
More Accessible Filters
No need to open the panel, avoids dirt falling.
Saves 5% in cleaning time.
Extensive Connectivity
Possibility of connecting different control devices, including a WIFI module.
Control your new Mundoclima air conditioner from anywhere.
“Follow Me” Function
The wireless remote control incorporates a temperature sensor.
Automatic Restart
Recovery of settings prior to power failure.
Emergency Operation
Possibility of operating the unit with the manual button in the event of some alarms.
Cold Air Prevention
In heating, the initial fan speed is adjusted according to the battery temperature.
Turbo Operation
Reduction of Cooling/Heating time to the maximum.
Fewer Screws
Both the indoor and outdoor units have fewer screws, making disassembly much easier.
Low Noise Level
Thanks to the Silence mode and its new design, the sound level in the indoor unit is reduced to a minimum of 20dB (in the MUPR-09-H6 mode). In the outdoor unit, optimized design of the air outlet grille with noise reduction of 3.3 dB(A) compared to previous models.
Adjustment of the Setpoint Temperature Range
The new remote control allows you to adjust: Minimum cooling from 17ºC to 24ºC; Maximum heating from 30ºC to 25ºC.
Refrigerant Leak Detection
The unit automatically detects the existence of possible refrigerant leaks in the circuit.
Several Indoor Fan Speeds
Up to 12 fan speed levels of the indoor unit that are automatically adjusted if automatic ventilation is activated.
Self-cleaning
This function cleans the interior battery, keeping the equipment dry and preventing bacteria from forming.
8ºc Heating
This function ensures that the ambient temperature in winter will never be below 8ºC while we are not at home.
Night Mode
This function allows the equipment to automatically increase the temperature in cooling or decrease the temperature in heating 1ºC per hour during the first 2 hours, and then keep it constant for the next 5 hours and finally turn off. This function saves energy and provides comfort during the night.
Cooling in Low Temperatures
Cooling operation down to -15ºC outdoors.
Temperature Compensation
The new remote control allows you to adjust the compensation temperature for the heating mode.
Multiple Outdoor Fan Speeds
Precise adjustment of the fan speed thanks to the DC motor.
Standby Function (Only 1w in Standby)
The outdoor unit is automatically disconnected from the power supply when the unit is in standby, so the standby consumption is only 1W.
Wide Operating Range
Cooling operation up to 50ºC and heating down to -15ºC.
U-shaped Legs
Thanks to the new rear legs of the outdoor unit, installation is more convenient (in the MUPR-09/24-H6 models).
WIFI Module (Optional)
Possibility of connecting a WIFI module to control the equipment from anywhere with a SmartPhone.
TECHNICAL SPECIFICATIONS
| Model | MUPR-09-H6 | MUPR-12-H6 | MUPR-18-H6 | MUPR-24-H6 | |||
|---|---|---|---|---|---|---|---|
| Code | CL20015 | CL20016 | CL20017 | CL20018 | |||
| Refrigeration | Nominal capacity (min ~ max) | kW | 2.63 (1.17 ~ 3.31) | 3.51 (1.26 ~ 4.45) | 5.27 (1.90 ~ 6.12) | 7.03 (2.66 ~ 7.88) | |
| Nominal consumption (min ~ max) | kW | 0.816 (0.1 ~ 1.27) | 1.153 (0.11 ~ 1.72) | 1.633 (0.15 ~ 2.35) | 2.306 (0.23 ~ 3.03) | ||
| Pdesignc (design load) | kW | 2,6 | 3,5 | 5,3 | 7,0 | ||
| SEER | W/W | 6,8 | 6,7 | 6,8 | 6,4 | ||
| Energy Labeling | A++ | A++ | A++ | A++ | |||
| Heating | Nominal capacity (min ~ max) | kW | 2.93 (0.82 ~ 3.72) | 3.81 (1.06 ~ 4.86) | 5.56 (1.42 ~ 6.74) | 7.62 (2.08 ~ 9.14) | |
| Nominal consumption (min ~ max) | kW | 0.811 (0.14 ~ 1.33) | 1.055 (0.17 ~ 1.74) | 1.5 (0.23 ~ 2.4) | 2.302 (0.31 ~ 3.27) | ||
| Intermediate climate zone | Pdesignh (design load) | kW | 2,4 | 2,6 | 4,4 | 5,6 | |
| SCOP | W/W | 4,1 | 4,2 | 4,2 | 4,0 | ||
| Energy label | A+ | A+ | A+ | A+ | |||
| Tbiv (Bivalent Temp.) | ºC | -7 | -7 | -6 | -7 | ||
| Warm climate zone | Pdesignh (design load) | kW | 3,0 | 3,0 | 4,7 | 7,2 | |
| SCOP | W/W | 5,10 | 5,20 | 5,40 | 5,20 | ||
| Energy label | A+++ | A+++ | A+++ | A+++ | |||
| Tbiv (Bivalent Temp.) | ºC | 2 | 2 | 5 | 4 | ||
| Tol (Operating limit temperature) | ºC | -15 | -15 | -15 | -15 | ||
| Electrical Power | V-Hz-F | 220-240V~ 50Hz, 1F | 220-240V~ 50Hz, 1F | 220-240V~ 50Hz, 1F | 220-240V~ 50Hz, 1F | ||
| Maximum consumption | kW | 2,075 | 2,2 | 2,55 | 3,7 | ||
| Maximum intensity | A | 9,5 | 10 | 11,5 | 17 | ||
| Indoor Unit | Air flow (High / Medium / Low) | m3/h | 472 / 360 / 254 | 562 / 497 / 224 | 870 / 730 / 500 | 1176 / 921 / 446 | |
| Sound pressure (High / Medium / Low / Silence) | dB(A) | 40 / 35 / 28 / 20 | 41 / 40 / 33 / 22 | 45 / 43 / 34 / 24 | 47 / 45 / 35 / 28 | ||
| Sound power (High) | dB(A) | 53 | 52 | 58 | 60 | ||
| Dimensions (W x H x D) | mm | 717 x 302 x 193 | 805 x 302 x 193 | 964 x 325 x 222 | 1106 x 342 x 232 | ||
| Weight | Kg | 7,0 | 7,7 | 10,1 | 13,2 | ||
| Outdoor Unit | Air flow (max) | m3/h | 1900 | 2000 | 2100 | 2700 | |
| Sound pressure (High) | dB(A) | 55 | 56 | 58 | 61 | ||
| Sound power (High) | dB(A) | 58 | 59 | 63 | 65 | ||
| Dimensions (W x H x D) | mm | 770 x 555 x 300 | 800 x 554 x 333 | 800 x 554 x 333 | 845 x 702 x 363 | ||
| Weight | Kg | 26,6 | 29,1 | 37,8 | 48,4 | ||
| Refrigerant | Type | R410A | R410A | R410A | R410A | ||
| Load | Kg | 0,8 | 0,95 | 1,48 | 2,0 | ||
| Precharge up to | m | 5 | 5 | 5 | 5 | ||
| Additional charge (from 5m) | g/m | 15 | 15 | 15 | 30 | ||
| Refrigerant pipes | Liquid | mm(inch) | 6.35 (1/4″) | 6.35 (1/4″) | 6.35 (1/4″) | 9.52 (3/8″) | |
| Gas | mm(inch) | 9.52 (3/8″) | 9.52 (3/8″) | 12.7 (1/2″) | 15.9 (5/8″) | ||
| Maximum length | m | 25 | 25 | 30 | 50 | ||
| Maximum height difference | m | 10 | 10 | 20 | 25 | ||
| Electrical Wiring | Power supply (outdoor unit) | mm2 | 2 x 2.5 + T | 2 x 2.5 + T | 2 x 2.5 + T | 2 x 4 + T | |
| Interconnection | mm2 | 4 x 2.5 + T | 4 x 2.5 + T | 4 x 2.5 + T | 4 x 4 + T | ||
| Wireless Remote Control | RG57 | RG57 | RG57 | RG57 | |||
| Operating temperature | Indoor (Cooling / Heating) | ºC | 17 ~ 32 / 0 ~ 30 | 17 ~ 32 / 0 ~ 30 | 17 ~ 32 / 0 ~ 30 | 17 ~ 32 / 0 ~ 30 | |
| Outdoor (Cooling / Heating) | ºC | -15 ~ 50 / -15 ~ 30 | -15 ~ 50 / -15 ~ 30 | -15 ~ 50 / -15 ~ 30 | -15 ~ 50 / -15 ~ 30 | ||
Warning:
1. Data and Specifications are Subject to Change without Notice.
2. The Sound Level Values Correspond to the Values Obtained in the Anechoic Chamber.
PRE-INSTALLATION REQUIREMENTS

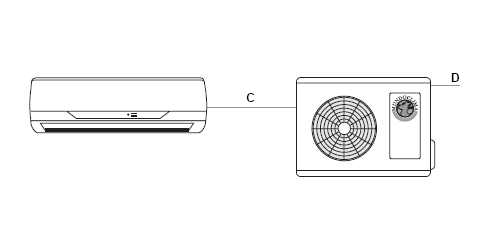

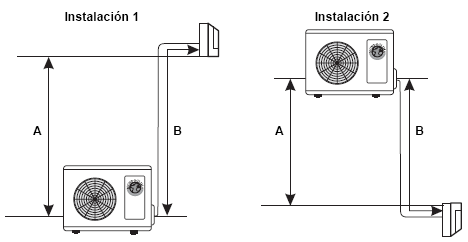

| MODEL | PIPING | ELECTRICAL CONNECTIONS | ||||||
|---|---|---|---|---|---|---|---|---|
| Gas | Liquid | Maximum length (B) | Maximum height difference (A) | Precharge up to | Additional charge | Power supply (D) | Interconnection (C) | |
| MUPR-09-H6 | 3/8″ | 1/4″ | 25 m | 10 m | 5 m | 15 gr/m | 2 x 2.5 + T | 4 x 2.5 + T |
| MUPR-12-H6 | 3/8″ | 1/4″ | 25 m | 10 m | 5 m | 15 gr/m | 2 x 2.5 + T | 4 x 2.5 + T |
| MUPR-18-H6 | 1/2″ | 1/4″ | 30 m | 20 m | 5 m | 15 gr/m | 2 x 2.5 + T | 4 x 2.5 + T |
| MUPR-24-H6 | 5/8″ | 3/8″ | 50 m | 25 m | 5 m | 30 gr/m | 2 x 4 + T | 4 x 4 + T |
OPTIONAL
| DESCRIPTION | CODE | |
|---|---|---|
| Wifi Module | CL94382 | |
| Wall Control KJR-12B | CL92905 | |
| Multi-Function Module, incorporates: | – Remote ON/OFF signal | CL94383 |
| – Remote alarm signal | ||
| – Wall control connection with weekly programmer (KJR-120C) | ||
| – CCM centralized control connection | ||
| Wall Control with Weekly Programmer KJR-120C* | CL94384 | |
| Centralized Control* | CCM03/E(M) | CL92911 |
| CCM30/BKE-B | CL92871 | |
