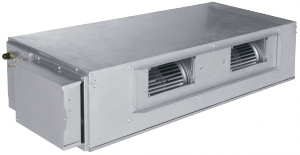

MUCR-H3 Series Duct Type Split
TECHNICAL SPECIFICATIONS
Model MUCR-12-H3 MUCR-18-H3 MUCR-24-H3 MUCR-30-H3 MUCR-36-H3 MUCR-42-H3 MUCR-48-H3 MUCR-60-H3 Code CL 20 862 CL 20 863 CL 20 864 CL 20 865 CL 20 866 CL 20 867 CL 20 868 CL 20 869 Cooling capacity kW 3,5 5,0 7,0 8,3 10,0 11,5 14,0 16,0 Heating capacity kW 3,8 5,6 8,0 9,2 12,0 13,5 15,5 16,5 Pdiseñonh (-10°C) kW 3,0 4,5 7,0 7,6 10,4 10,5 11,8 12,5 SEER/SCOP W/W 5,6/4,0 5,1/3,8 5,1/3,8 5,1/3,8 5,1/3,8 5,1/3,8 5,1/3,8 5,1/3,8 Electrical supply V-Hz-F 230-50-1 230-50-1 230-50-1 230-50-1 230-50-1 230-50-1 230-50-1 400-50-3 Indoor Unit Air flow m³/h 750 1.000 1.400 1.400 2.100 2.100 2.400 3.000 Static pressure Standard (Pa) 25 25 25 37 37 37 50 50 Range (Pa) 0~30 0~30 0~100 0~100 0~150 0~150 0~150 0~150 Sound pressure level dB(A) 37/36/34/28 40/39/36/28 47/46/44/40 47/46/44/40 53/52/48/44 53/52/48/44 55/53/49/45 56/55/51/46 Dimensions (W x H x D) mm 1.037x266x721 1.037x266x721 1.239x268x558 1.239x268x558 1.226x290x775 1.226x290x775 1.340x350x750 1.340x350x750 Net weight kg 33 33 34 34 46 46 56 56 Outdoor Unit Air flow m³/h 3.200 3.200 4.000 4.000 5.100 6.600 6.600 6.600 Sound pressure level dB(A) 55 56 57 58 63 62 62 63 Dimensions (W x H x D) mm 848x540x320 955x700x396 980x790x427 980x790x427 1.107×1.100×440 958×1.349×412 958×1.349×412 1.085×1.365×427 Net weight kg 34 47 67 71 92 95 105 124 Refrigerant piping (inches) Liquid 1/4″ 1/4″ 3/8″ 3/8″ 3/8″ 3/8″ 3/8″ 3/8″ Gas 3/8″ 1/2″ 5/8″ 5/8″ 5/8″ 5/8″ 5/8″ 3/4″ Refrigerant charge kg 1,2 1,4 2,2 2,4 3,5 3,7 4 5
Warning:
PRE-INSTALLATION REQUIREMENTS

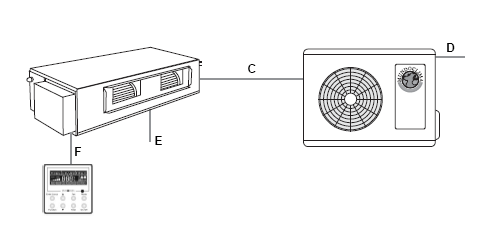

MODEL PIPING ELECTRICAL CONNECTIONS Gas Liquid Maximum length (B) Maximum height difference (A) Precharge up to Additional charge Power supply Com. (C/F) Indoor (E) Outdoor (D) MUCR-12-H3 3/8″ 1/4″ 20 m 15 m 7,5 m 30 gr/m 2 x 1.5 + T 2 x 2.5 + T 2 x 0,75 MUCR-18-H3 1/2″ 1/4″ 20 m 15 m 7,5 m 30 gr/m 2 x 1.5 + T 2 x 2.5 + T 2 x 0,75 MUCR-24-H3 5/8″ 3/8″ 30 m 15 m 7,5 m 60 gr/m 2 x 1.5 + T 2 x 2.5 + T 2 x 0,75 MUCR-30-H3 5/8″ 3/8″ 30 m 15 m 7,5 m 60 gr/m 2 x 1.5 + T 2 x 2.5 + T 2 x 0,75 MUCR-36-H3 5/8″ 3/8″ 50 m 30 m 7,5 m 60 gr/m 2 x 1.5 + T 2 x 2.5 + T 2 x 0,75 MUCR-42-H3 5/8″ 3/8″ 50 m 30 m 7,5 m 60 gr/m 2 x 1.5 + T 2 x 2.5 + T 2 x 0,75 MUCR-48-H3 5/8″ 3/8″ 50 m 30 m 9,5 m 60 gr/m 2 x 1.5 + T 2 x 6 + T 2 x 0,75 MUCR-60-H3 3/4″ 3/8″ 50 m 30 m 9,5 m 60 gr/m 2 x 1.5 + T 3 x 2.5 + T 2 x 0,75
