Model 28

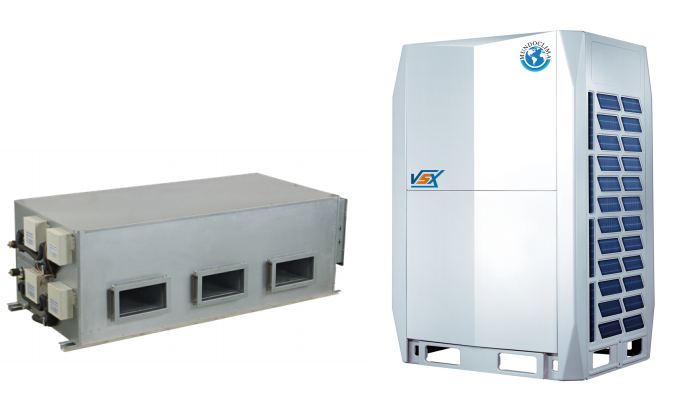

Models 40 to 56
High-capacity Duct-Type Split Inverter SEries MUCHR-H6A
Characteristics
- Outdoor unit vertical discharge
- DC Inverter Compressor
- Precise temperature control
- High static pressure
- Wall remote control and “Follow Me” function KJR-29B included
- Wall remote control with weekly programmer KJR-120C (optional)
- CCM centralized control (optional)
Technical Documentation
| Technical Data Sheet | |||||
| User Manual | |||||
| Indoor Unit Installation Manual 28 | |||||
| Indoor Unit Installation Manual 40 to 56 | |||||
| Outdoor Unit Installation Manual |
TECHNICAL SPECIFICATIONS
| Model | MUCHR-28-H6A | MUCHR-40-H6A | MUCHR-45-H6A | MUCHR-56-H6A | ||
|---|---|---|---|---|---|---|
| Code | CL23907 | CL23909 | CL23910 | CL23911 | ||
| Cooling (1) | Capacity | kW | 27,5 | 39,32 | 44,23 | 54,4 |
| kcal/h | 23.653 | 33.820 | 38.043 | 46.790 | ||
| Consumption | kW | 7,02 | 12 | 13,68 | 17,91 | |
| EER | kW/kW | 3,92 | 3,28 | 3,23 | 3,04 | |
| Heating (2) | Capacity | kW | 28,24 | 40,63 | 45,15 | 57,48 |
| kcal/h | 24.290 | 34.946 | 38.834 | 49.439 | ||
| Consumption | kW | 6,74 | 12,08 | 13,57 | 18,69 | |
| COP | kW/kW | 4,19 | 3,36 | 3,33 | 3,08 | |
| Indoor Unit | MVD- Model | 280T1/DHN1-B | D400T1/N1-F | D450T1/N1-F | D560T1/N1 | |
| Code | CL23383 | CL23187 | CL23188 | CL23186 | ||
| Electrical Power | F, V, Hz | 1N-, 220-240V, 50Hz | ||||
| Nominal Intensity | A | 6 | 12,5 | 12,5 | 15,5 | |
| Flow Rate (High / Medium / Low) | m3/h | 4820 / 4660 / 4620 | 7474 / 6072 / 4995 | 7474 / 6072 / 4995 | 9550 / 7950 / 6600 | |
| Static Pressure Disp. | Pa | 62 (40 200) | 200 (50 280) | 200 (50 280) | 200 (50 280) | |
| Sound Pressure (High / Medium / Low) (3) | dB(A) | 57 / 53 / 50 | 61 / 59 / 56 | 61 / 59 / 56 | 63 / 60 / 57 | |
| Dimensions (W x H x D) | mm | 1450 x 505 x 925 | 1970 x 668 x 902,5 | 1970 x 668 x 902,5 | 1970 x 668 x 902,5 | |
| Weight | kg | 108 | 232 | 232 | 232 | |
| Drain Connection | mm | 32 | 32 | 32 | 32 | |
| Power Cable (5) | mm2 | 2 x 2.5 + T | 2 x 4 + T | 2 x 4 + T | 2 x 4 + T | |
| Outdoor Unit | MVD- Model | V5X280W/V2GN1 | V5X400W/V2GN1 | V5X450W/V2GN1 | V5X560W/V2GN1 | |
| Code | CL23301 | CL23303 | CL23304 | CL23306 | ||
| Electrical Power | F, V, Hz | 3N-, 400V, 50Hz | ||||
| Nominal Intensity | A | 21 | 27,3 | 29,9 | 41,2 | |
| Flow | m3/h | 12.000 | 14.000 | 14.000 | 16.000 | |
| Static Pressure Disp. | Pa | 20 (0 – 40) | 20 (0 – 40) | 20 (0 – 40) | 20 (0 – 40) | |
| Sound Pressure (4) | dB(A) | 59 | 62 | 62 | 63 | |
| Dimensions (W x H x D) | mm | 990 x 1635 x 790 | 1340 x 1635 x 790 | 1340 x 1635 x 790 | 1340 x 1635 x 790 | |
| Weight | Kg | 219 | 315 | 315 | 340 | |
| Power Cable (5) | mm2 | 4 x 6 + T | 4 x 6 + T | 4 x 10 + T | 4 x 16 + T | |
| Refrigerant | Type | R410A | ||||
| Pre-charged amount | kg | 9 | 13 | 13 | 16 | |
| Additional charge (from 0 m) | kg/m | 0,057 | 0,11 | 0,11 | 0,17 | |
| Refrigerant Connections | Liquid Line | mm (“) | 9.52 (3/8″) | 12.7 (1/2″) | 12.7 (1/2″) | 15.9 (5/8″) |
| Gas Line | mm (“) | 22.2 (7/8″) | 28.6 (1 1/8″) | 28.6 (1 1/8″) | 28.6 (1 1/8″) | |
| Refrigerant Distances (6) | Max. Vertical | m | 110 | |||
| Total | m | 175 | ||||
| Communication Cable | mm2 | 3 x 0.75 (Shielded) | ||||
| Remote control | Model | KJR-29B | ||||
| Type | Wiring | |||||
| Operating Temp. Range | Refrigeration | ºC | -5 to 43 | |||
| Heating | ºC | -20 to 24 | ||||
Notes:
(1) Nominal cooling conditions: indoor 27ºC DB, 19ºC WB and outdoor 35ºC DB, for an equivalent pipe length of 8 m and height difference of 0 m.
(2) Nominal heating conditions: indoor 20ºC DB, 15ºC WB and outdoor 7ºC DB, for an equivalent pipe length of 8 m and height difference of 0 m.
(3) Sound pressure measured in an anechoic chamber at a distance of 1m from the front and 1.4m in height.
(4) Sound pressure measured in an anechoic chamber at a distance of 1m from the front and 1.3m in height.
(5) Recommended power wiring for L 20m, for longer distances it must be calculated.
(6) Refrigerant distances when the outdoor unit is installed lower than the indoor units. Otherwise, instead of 110m it is 90m.
The design and specifications are subject to change without notice for product improvement.
Attention:
– Before start-up, the entire micro-switch S6 must be set to the OFF position on the outdoor unit.
– Models 40, 45 and 56 do not include an air filter.
